Description
GreenSeed Hybrid Heat Pump Water Heater

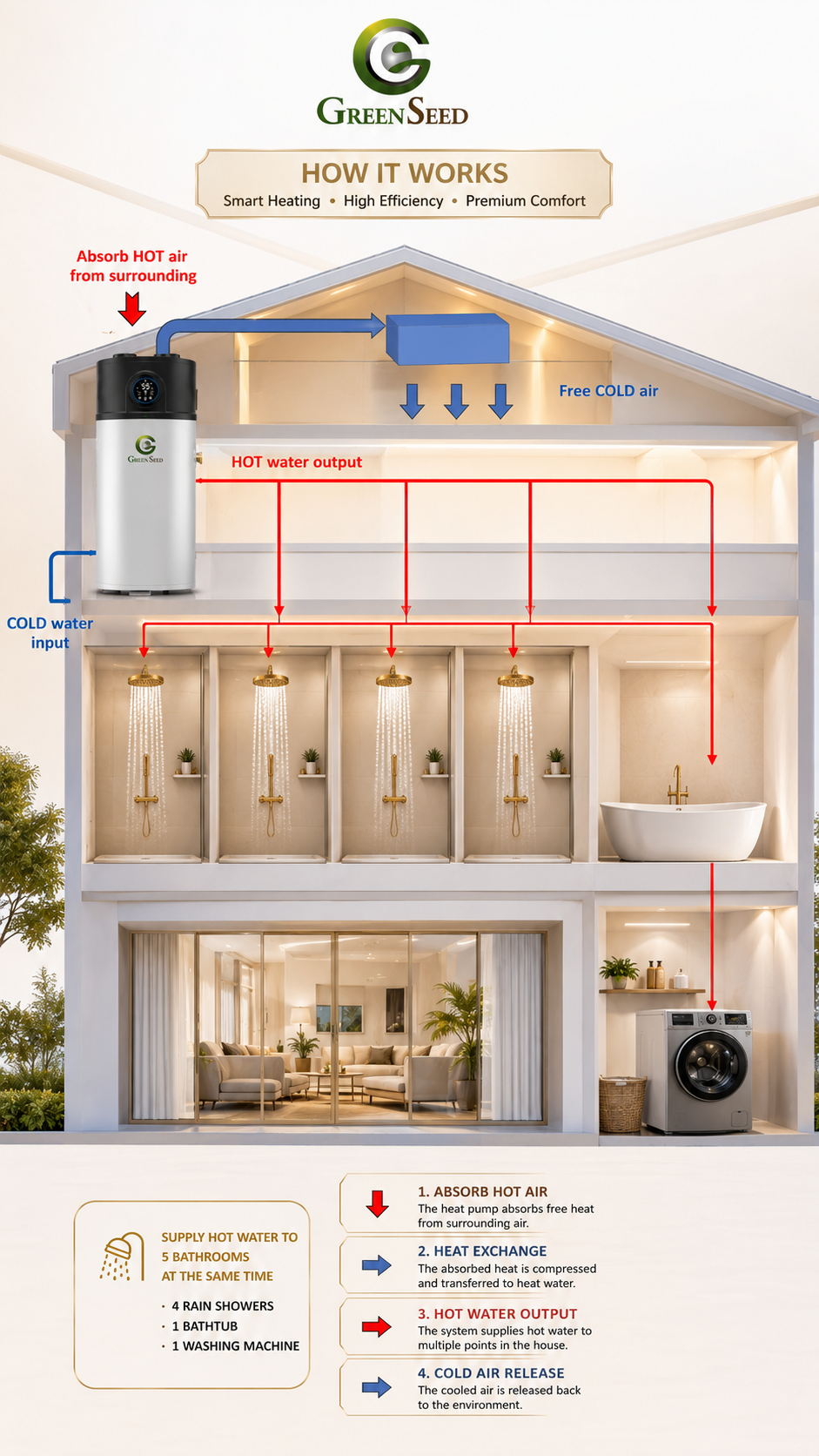

The GreenSeed Hybrid Heat Pump Water Heater is an energy-efficient hot water solution that utilizes renewable heat energy from the surrounding air to heat water while reducing electricity consumption by up to 70%. Combining advanced heat pump technology with electric heating backup, the system delivers reliable hot water performance with lower operating costs compared to conventional electric water heaters.
Designed for residential, hospitality, and commercial applications, the hybrid system offers multiple operating modes including Heat Pump, Electric Heating, Automatic, and Boost Mode to suit varying hot water demands. In addition to producing hot water, the unit releases cool air during operation, helping to improve surrounding room comfort while maximizing energy efficiency.
Featuring an integrated storage tank, intelligent controls, environmentally friendly R134a refrigerant, and high-performance insulation, the GS Hybrid Heat Pump provides a sustainable and cost-effective hot water solution for modern buildings.
Key Features
- Reduce electricity consumption by up to 70%
- Utilizes renewable heat energy from ambient air
- Heat Pump, Electric Heating, Automatic & Boost Modes
- Integrated hot water storage tank
- Simultaneous water heating and space cooling
- High COP (>3) for superior efficiency
- Environmentally friendly R134a refrigerant
- Intelligent digital control system
- MYHIJAU-friendly energy-saving technology
- Reliable hot water supply for residential and commercial use
Applications
- Residential Homes
- Bungalows & Villas
- Hotels & Resorts
- Worker Hostels
- Apartments & Condominiums
- Commercial Buildings
- Sports & Recreation Facilities
Technical Specifications
| Specification | GSHP-HHP20/200D7 | GSHP-HHP20/300D7 |
|---|---|---|
| Tank Capacity | 200 Litres | 300 Litres |
| Operation Mode | Heat Pump / Electric Heating / Automatic / Boost | Heat Pump / Electric Heating / Automatic / Boost |
| Electrical Supply | 240V / 50Hz | 240V / 50Hz |
| Max Power Input | 2400 W | 2400 W |
| Max Current Input | 12.7 A | 12.7 A |
| Rated Heat Output | 2000 W | 2000 W |
| Heat Pump Power Input | 585 W | 585 W |
| COP | >3 | >3 |
| Refrigerant | R134a | R134a |
| Max Hot Water Temperature (Heat Pump) | 65°C | 65°C |
| Electric Heating Power Input | 1500 W | 1500 W |
| Max Hot Water Temperature (Boost) | 75°C | 75°C |
| Product Dimensions | Ø662 × 1530 mm | Ø620 × 1970 mm |
| Heating Time to 60°C* | 210 min (HP) / 105 min (Boost) | 315 min (HP) / 158 min (Boost) |
| Rated Pressure | 1 MPa | 1 MPa |
| Net Weight | 100 kg | 121 kg |
| Water Inlet / Outlet / Drain | 20 mm | 20 mm |
| Carton Size | 725 × 725 × 1680 mm | 725 × 725 × 2120 mm |
Approximate heating time from 30°C inlet water temperature
